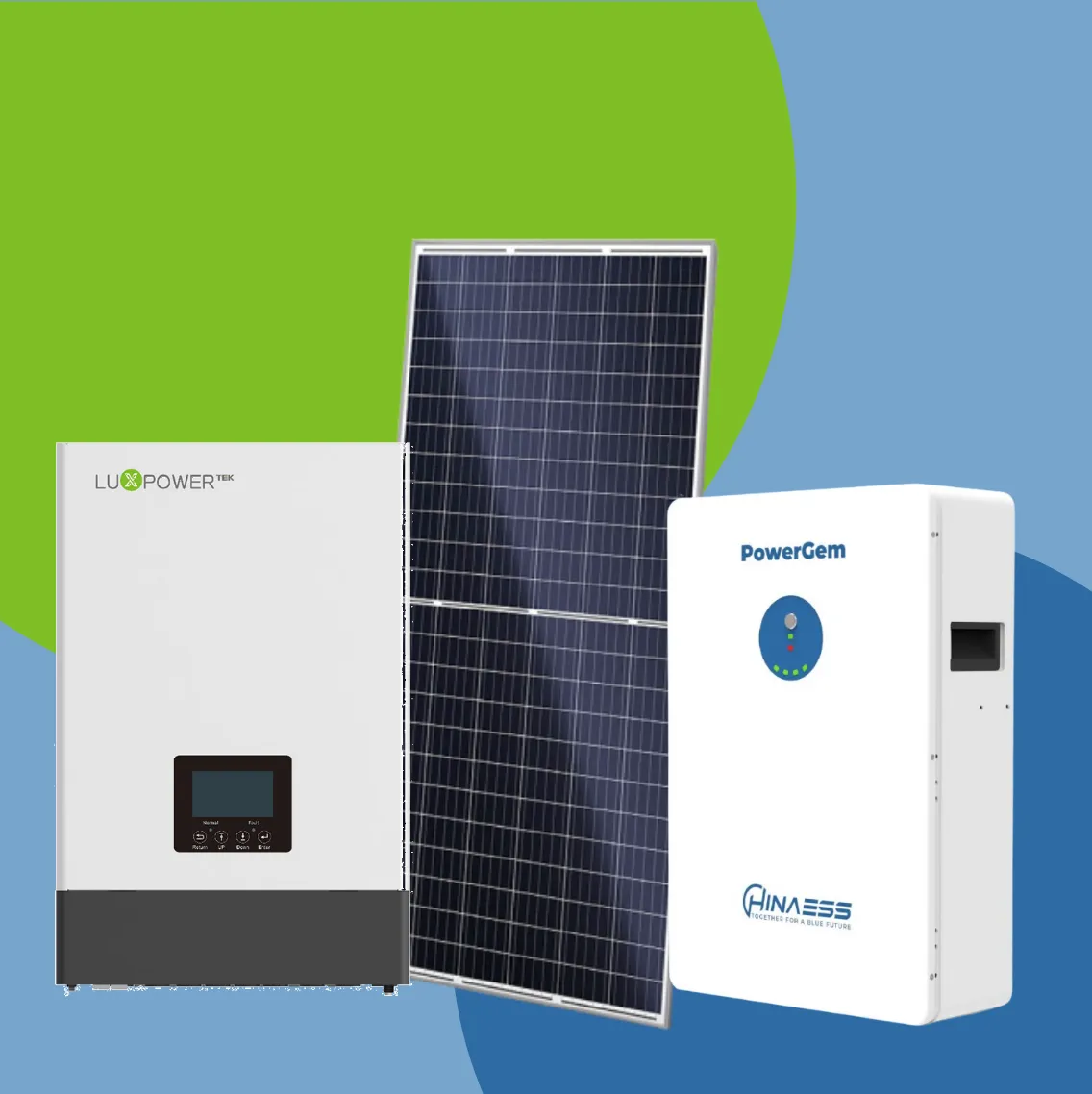

Combo LUX 5 - OFFGRID Solar

Combo LUX 5 - OFFGRID Solar

  • DefaultTitle

$ 60.02

$ 46.17

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Combo:

1x 5kW LuxPower OFFGRID Inverter

1x 5kW Hinaess Battery

8x Astronergy 550W solar panel

Warranty Inverter 2.5 year,

Warranty Hinaess battery 10 year,

Combo D9 LuxPower SNA 5kW HinaESS PowerGem 5.12kW:

HINAESS PowerGem 5.12kW Lithium Ion Battery 51.2V 100Ah -

A 5 kWh battery typically lasts between 5 and 15 years, depending on the battery chemistry, usage habits, and maintenance. This Inverter and battery comes with Solar panels

Specifications: 10-year warranty,
super-secure LFP material,
Elegantly designed enclosure
Wall-mounting / floor-standing,
a speedy installation
remote observation,
convenient remote upgrading,
Auto-addressing in a master-slave configuration,
32 modules can run in parallel..
compatibility with a variety of inverters
Continuous charge/discharge at 1C rate
Multiple safeguards to prevent overcharging
BMS management with intelligence for extended life
Low self-consumption, active balancing charge



LuxPower 5KW Eco Hybrid/Off-Grid(SNA) Inverter -

The LuxPower 5KW Eco Hybrid Off-GridSNA Inverter is a high-quality inverter that is designed to provide reliable and efficient power in both hybrid and off-grid applications.

Here are some of its features:

  • Power Output: The LuxPower 5KW Eco Hybrid/Off-Grid SNA  Inverter has a maximum power output of 5KW, which is enough to power most homes and small businesses.
  • Hybrid Functionality: This inverter is designed to work with both grid-tied and off-grid solar systems, providing maximum flexibility in power management.
  • Off-Grid Functionality: The LuxPower 5KW Eco Hybrid/Off-Grid SNA  Inverter can operate as a standalone system, providing power even when there is no grid connection available.
  • Battery Management: The inverter is equipped with advanced battery management features, ensuring that your batteries are always charged and ready for use.

MPPT Charge Controller: The built-in MPPT charge controller ensures that your solar panels are always working at maximum efficiency, maximizing your energy production.

LCD Display: The LuxPower 5KW Eco Hybrid/Off-Grid SNA Inverter has a user-friendly LCD display that provides real-time information about the status of the system.
Multiple Protection Features: The inverter is equipped with a range of protection features, including over-voltage, under-voltage, over-temperature, and short-circuit protection, ensuring the safety of your system.
  • Remote Monitoring: The inverter can be remotely monitored using a mobile app or a web-based portal, allowing you to keep an eye on your system from anywhere.
  • Easy Installation: The LuxPower 5KW Eco Hybrid/Off-Grid SNA Inverter is designed for easy installation, with clear instructions and a user-friendly interface.

Output

• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave

Battery
• Battery Type Supported: Lithium . Lead-Acid
• Normal Voltage: 51.2VDC . 48VDC
• Maximum Charging Voltage: 59VDC

Solar
• Maximum PV Power: 3200W . 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A . 13A

Grid
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz . 60Hz Auto Sensing

Environment Limit
• Ingress Protection: IP20
• Relative Humidity: 5P to 95P   Non Condensing
• Operating Temperature Range: 0C to 50C
• Storage Temperature: -15C to 60C
• Communication: CAN . RS485/ WIFI . GPRS

Overall, the LuxPower 5KW Eco Hybrid Off-Grid SNA  Inverter is a reliable and efficient solution for those looking to power their home or business using solar energy.
