FEATURES

• Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate


• 32-1/2 in. rip capacity easily cuts a variety of larger shelving and trim materials

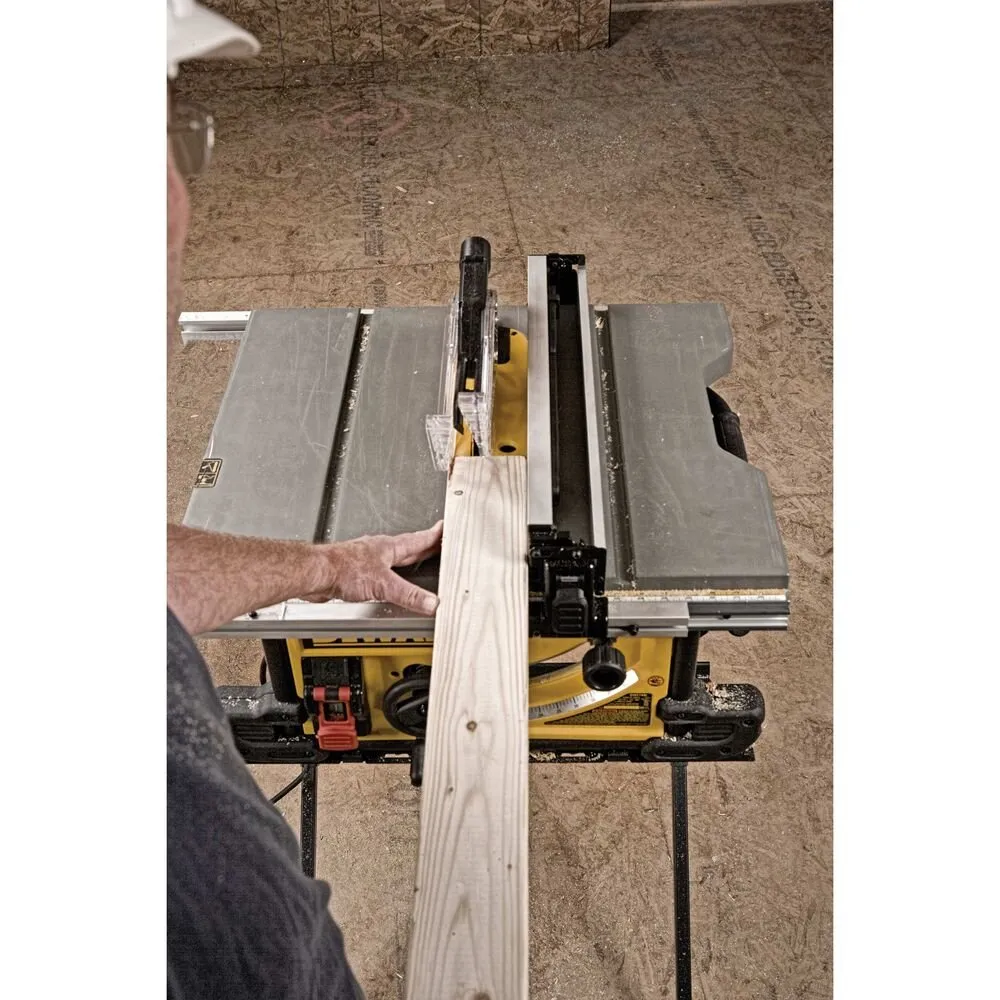

• Two position flip-over rip fence allows for narrow rip cuts and material support

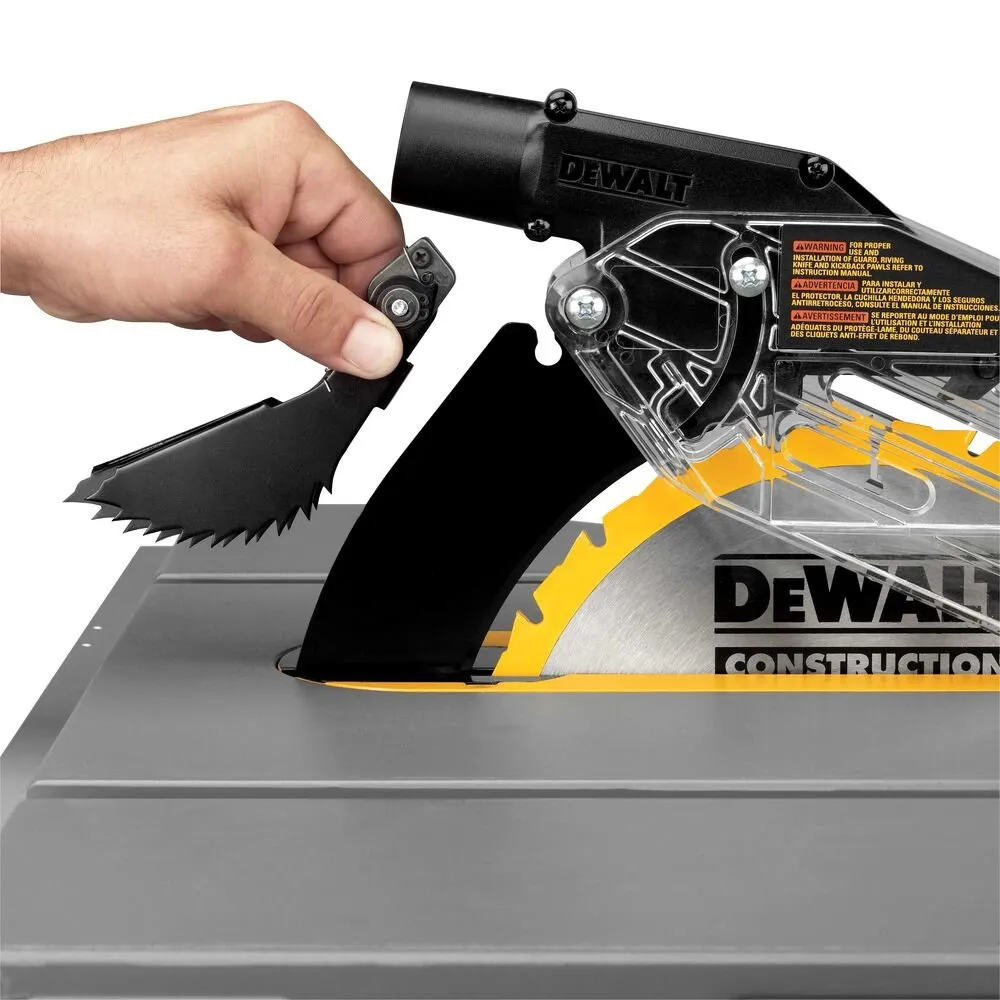

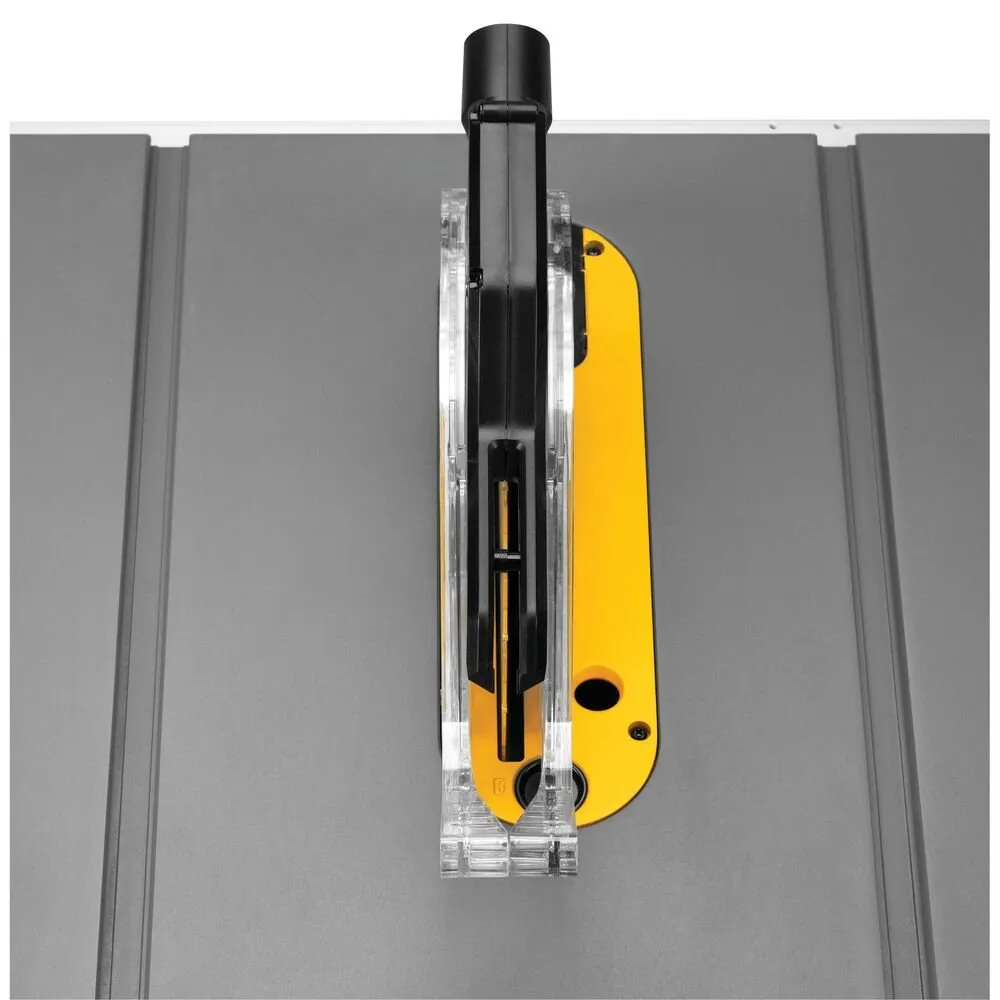

• Site-Pro modular guarding system allows for tool-free adjustments of guarding components appropriate for each application


• 2-1/2 in. Dust Collection Port easily connects to a vacuum for efficient dust extraction

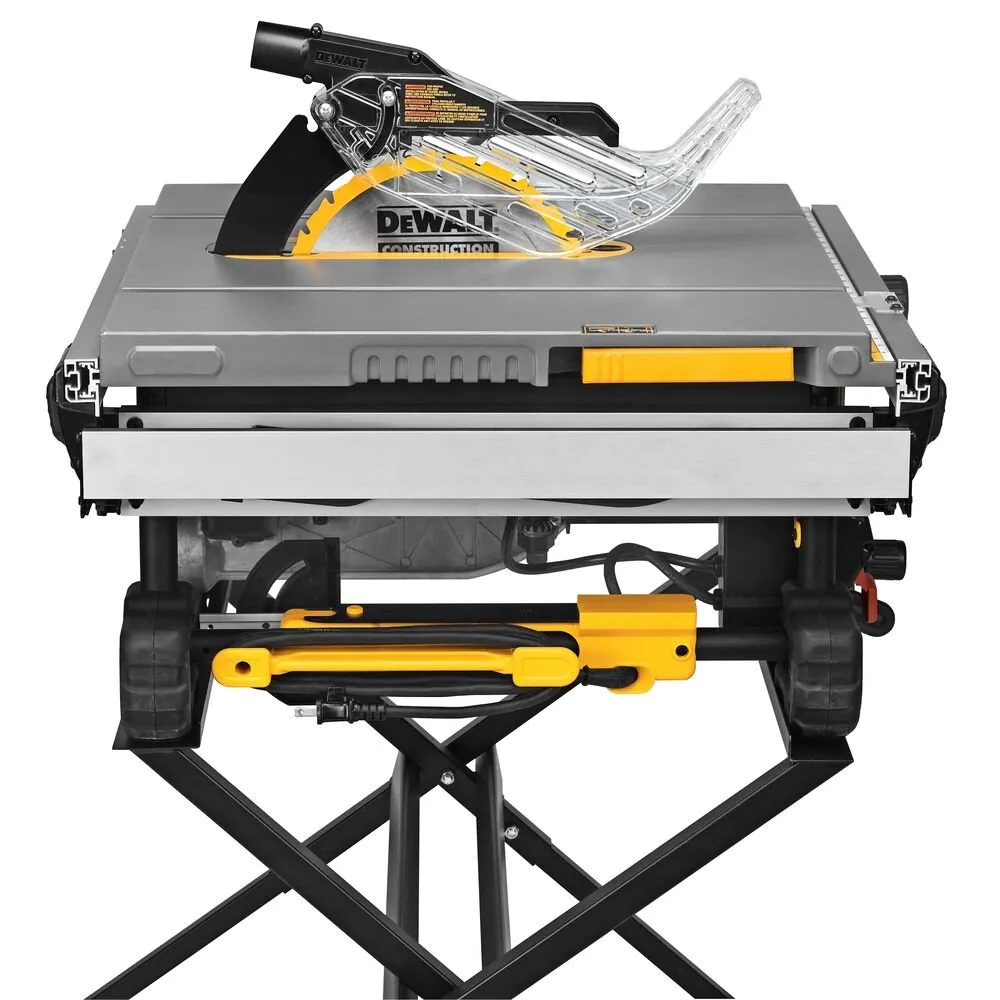

• Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use.

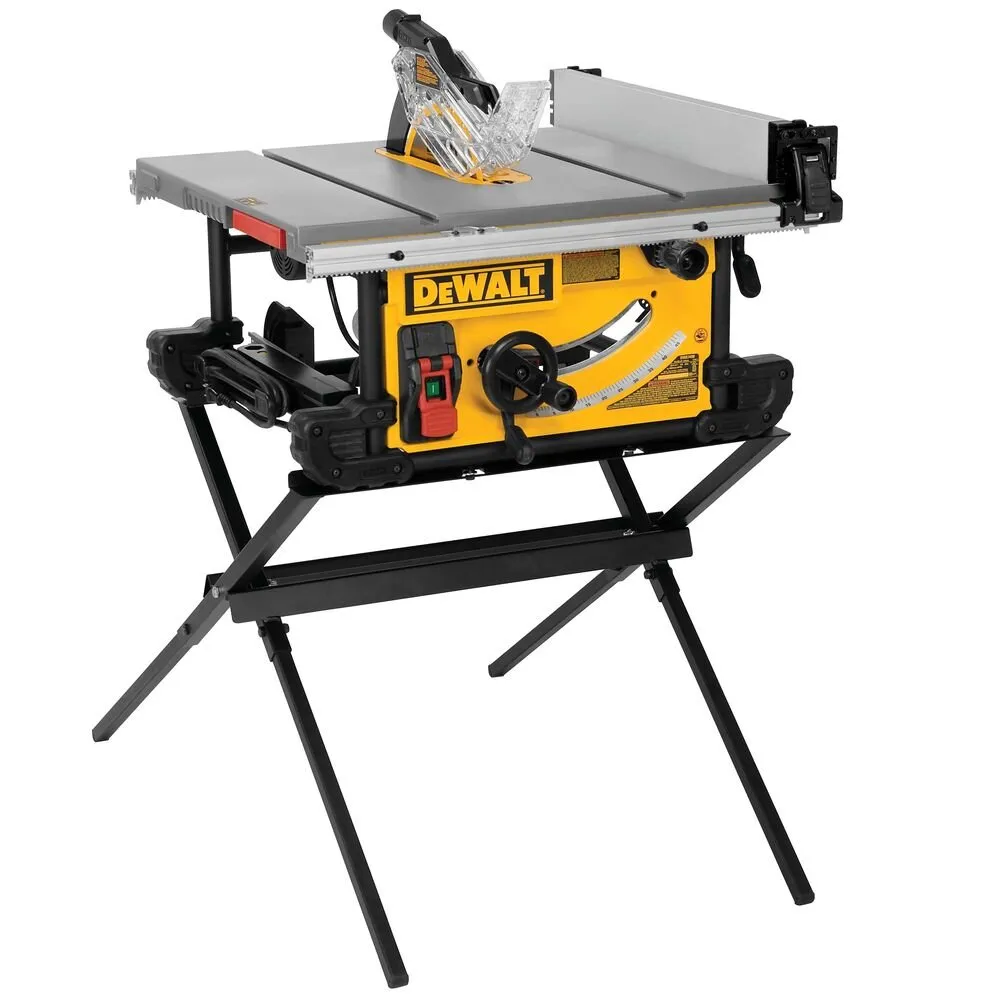

• Folding scissor stand designed for easy set up and breakdown with excellent stability


• 15 amp Motor quickly rips through hardwoods with ease

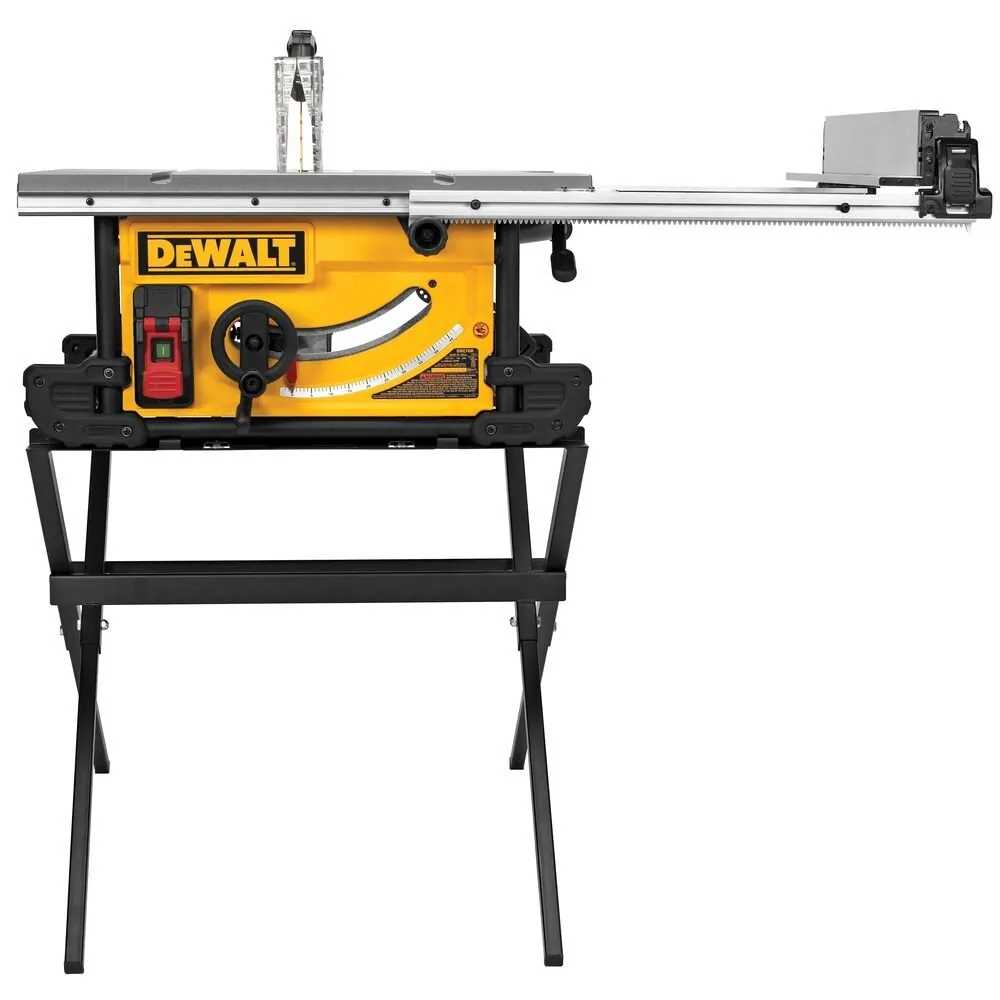

• Telescoping fence rails retract to create a small, portable package


• 3-1/8 in. depth-of-cut at 90 and 2-1/4 in. at 45

SPECIFICATIONS

•
  AMPS 15 AMPS




•
  ARBOR SIZE 5/8 IN




•
  BLADE DIAMETER 10"




•
  DEPTH OF CUT AT 45° 2-1/4 IN




•
  DEPTH OF CUT AT 90° 3-1/8 IN




•
  DUST PORT DIAMETER 2-1/2 IN




•
  MAX RIP TO LEFT OF BLADE 22 IN




•
  MAX RIP TO RIGHT OF BLADE 32-1/2 IN




•
  MAX WIDTH OF DADO 13/16 IN




•
  NO LOAD SPEED 4800 RPM




•
  TOOL HEIGHT 30.25 IN




•
  TOOL LENGTH 26.375 IN




•
  TOOL WEIGHT 87 LBS


INCLUDES

• 10 in. 24-Tooth Carbide Blade


• Scissor Stand


• Push Stick


• Miter Gauge


• Rip Fence


• 2x Blade Wrenches


• Blade Guard Assembly
