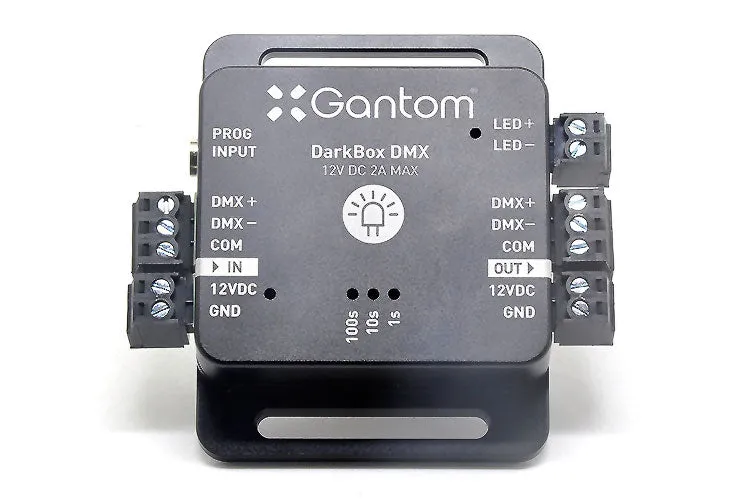

Gantom DarkBox DMX
The DarkBox DMX is an ultra compact and scalable single output DMX tunable LED dimmer. The DarkBox DMX also has a variety of built-in patterns (blink, strobe, candle flicker, power surge flicker, and pulse) for special effects lighting without the need to program complex DMX signals. This device occupies 3 DMX channels, which controls brightness, speed, and mode, respectively. The V2 features a new machined aluminum body to protect the unit in harsh environments as well as an upgraded MOSFET that allows for higher current capacity and protects against output short circuits.
FEATURES
- Makes any dimmable 12VDC LED flicker, strobe, blink, surge, pulsate, or dim
- Fully tunable speed and brightness for any mode
- Standalone operation with DMX signal is possible if tuned and programmed with DMX Programmer app
- LED indicator displays output mode even without external LEDs attached
- Non-repeating algorithm for unique and realistic flicker patterns
APPLICATIONS
- Dark attractions
- Candelabras
- Props and animatronics
- Lanterns
- Special effects strobe
- Signage
DMX Channel Descriptions
| Channel | Level | Description |
|
Ch 1 €“ Brightness Level |
0-255 | Dim to bright |
|
Ch 2 €“ Speed |
/ | If Ch 3 is 0, Ch 2 controls blink speed If Ch3 is non zero, Ch 2 controls speed of function |
|
Ch3 €“ Built-In Functions |
32-64 | Fade in |
| 65-96 | Fade out | |
| 97-127 | Pulsing | |
| 128-159 | Surge | |
| 160-191 | Strobe | |
| 191-255 | Flicker |
Specifications
| Input | 12VDC |
| Output | 12VDC PWM output, up to 2A load |
| Dimming | PWM |
| Dimensions | 71mm (2.8€³) x 67mm (2.6€³)x 15.5mm (0.6€³) |
| Power Connector | 2.1mm DC jack with screw terminal adapter |
| Signal Connector | 3.5mm TRS jack with screw terminal adapter |
| IP Rating | IP30 |
