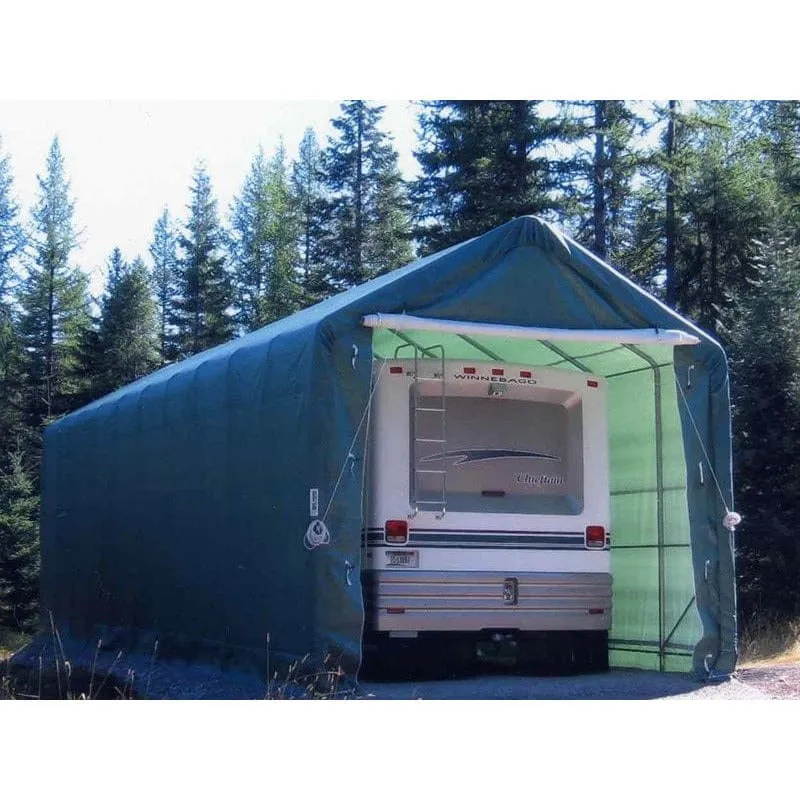

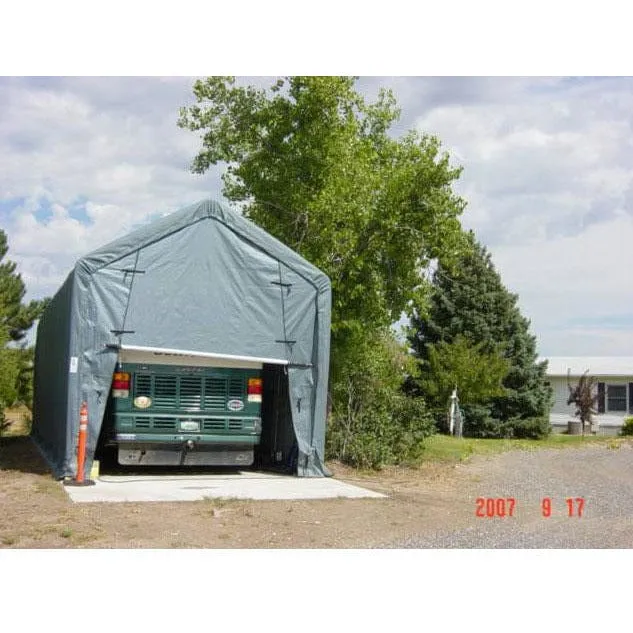

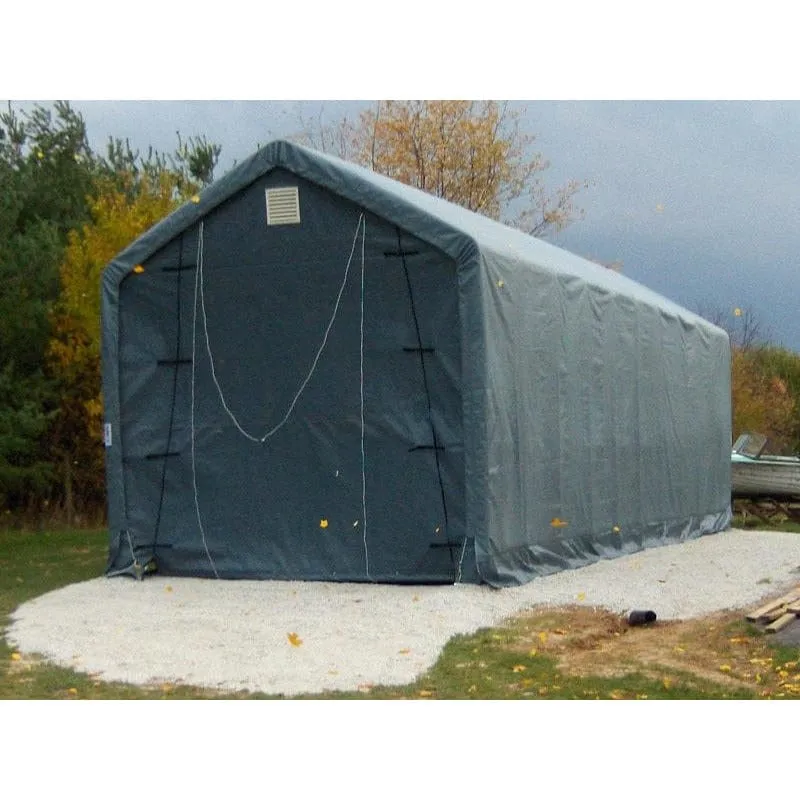

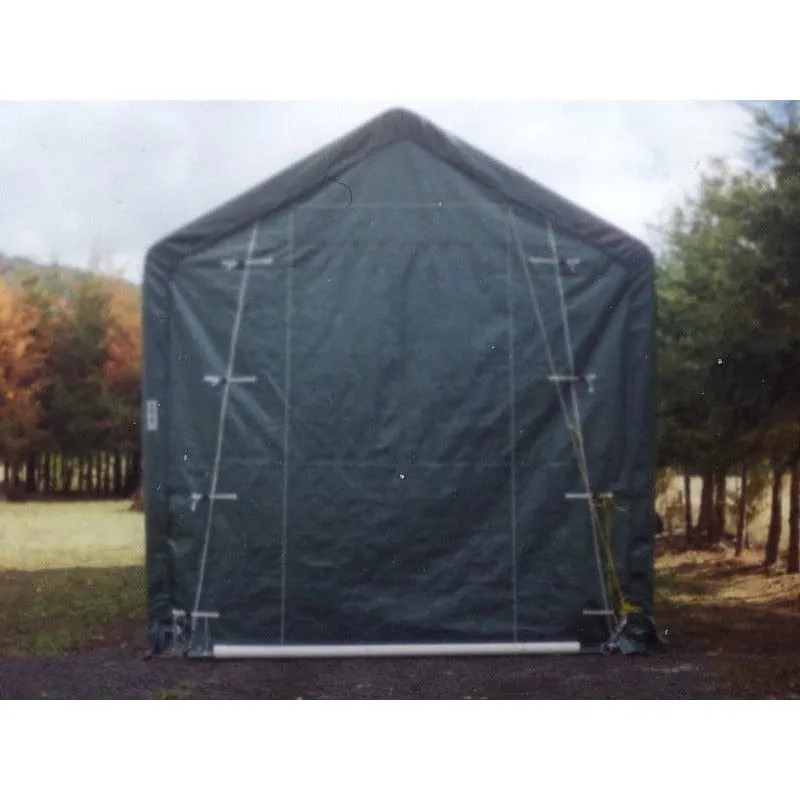

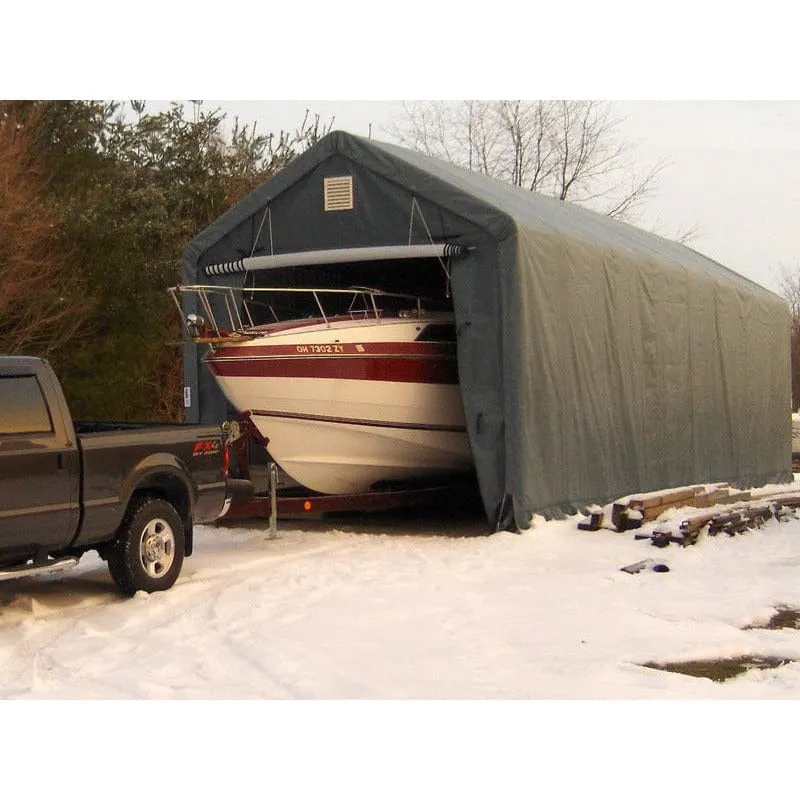

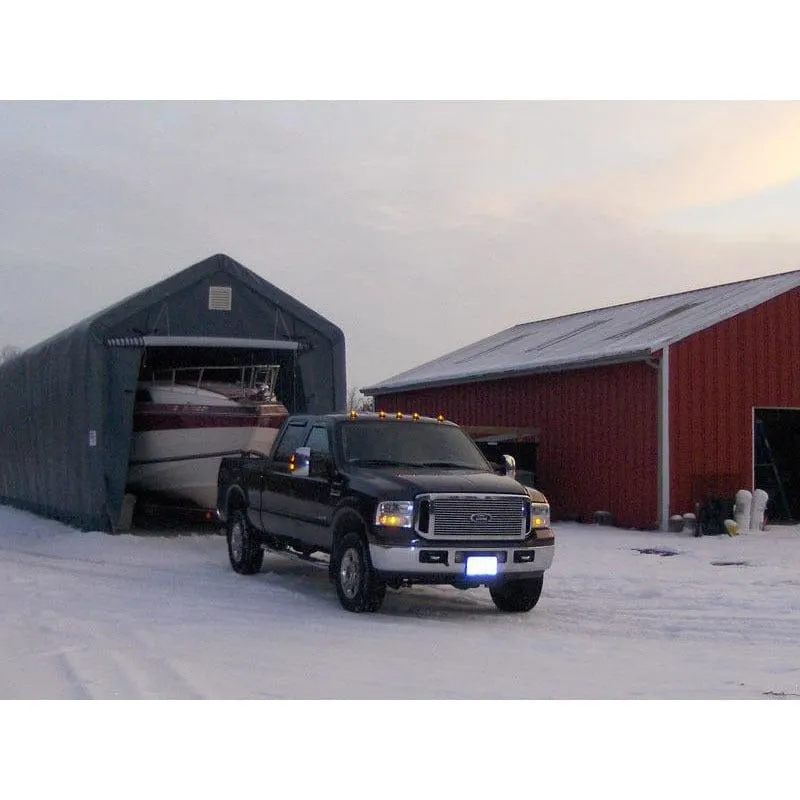

The 14x42x15 Portable Shelter Is Perfect For Both Residential And Commercial Use!
This industrial shelter provides additional space to store your large boats, RVs, and vehicles. It can be used to house commercial equipment, provide outdoor protection at commercial job sites, and as a portable building for your temporary or long-term needs.
The roll-up door kit is included for the front door. The structure comes with 2 double zipper doors to allow easy access with drive-thru capabilities. As with all our structures, the galvanized steel frame offers durability and sustainability for long-term use. Get the superior protection you need to give you peace of mind for your most important investments.
View the Rhino Shelters Instant Garage (Peak Style) 14’W x 42’L x 17’H - PB144217H features below:
- Heavy Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life.
- Easy Bolt Together Design –All Pre-drilled & Cut
- Wind Brace Support on Both Sides
- Two(2) Double Zipper Doors with Bottom Pockets
- One (1) complete Roll-up Door Kit
- Protective Plastic Tube End Caps – All Open Ends
- Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
- Quick Assembly Wrench included
- Heavy Duty Poly Rope for Main Cover Tie Down
-
Grommets on Cover & Doors
- Twenty-Two (22) permanent anchors included
- Twelve(12) Box Shipment
- Average install time – 8 to 10 hours
Specifications
| Nominal Size | 14’ Wide x 42’ Long x 17’ High |
| Arches | Eleven (11) on 48” Spacing 2-3/8” diameter frame members |
| Standard End Door Size | 12’ Wide zipper door each end |
| Available Colors | Outer Colors: Green and Gray |
| All Interiors | White Only |
| Shipping Weight | 1350 lbs shipped in Twelve(12) boxes Shipped via Motor Freight |
| Pallet Dimensions | 44″ x 86″ x 43″ |
| Main Cover | UV Protected Fabric Backed Poly Material 10 0z. Weight. 22 Mil. Thick. |
| Fire Retardant Standard | Main Cover & Doors meet CPAI -84 Section 5 |
| Box Dimensions | |
| Box 1: 70″ Long x 20″ Wide x 8″ High | |
| Box 2: 70″ Long x 20″ Wide x 8″ High | |
| Box 3: 57″ Long x 13″ Wide x 6″ High | |
| Box 4: 70″ Long x 21″ Wide x 8″ High | |
| Box 5: 68″ Long x 21″ Wide x 8″ High | |
| Box 6: 57″ Long x 13″ Wide x 7″ High | |
| Box 7: 58″ Long x 14″ Wide x 7″ High | |
| Box 8: 52″ Long x 11″ Wide x 8″ High | |
| Box 9: 53″ Long x 10″ Wide x 6″ High | |
| Box 10: 53″ Long x 9″ Wide x 6″ High | |
| Box 11: 71″ Long x 17″ Wide x 8″ High | |
| Box 12: 87″ Long x 27″ Wide x 8″ High | |
| Anchors | Twenty-Two (22) 36” Anchor with U-Bolts & Drive Rod Std. |
Package Includes
- 10 oz. UV Treatment Cover
- 2 Double Zipper Doors-12’W x 12’8″H (9’3″W at top)
- 22 Cable Earth Anchor Kit
- 2-3/8″ Galvanized Steel Frame
- Roll Up Door Kit for front door included
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our
