Name: Rich Solar NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified
SKU: 223169

Rich Solar NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

Features:

Support multiple input & output - Split phase 208/240VAC or single phase 230VAC.

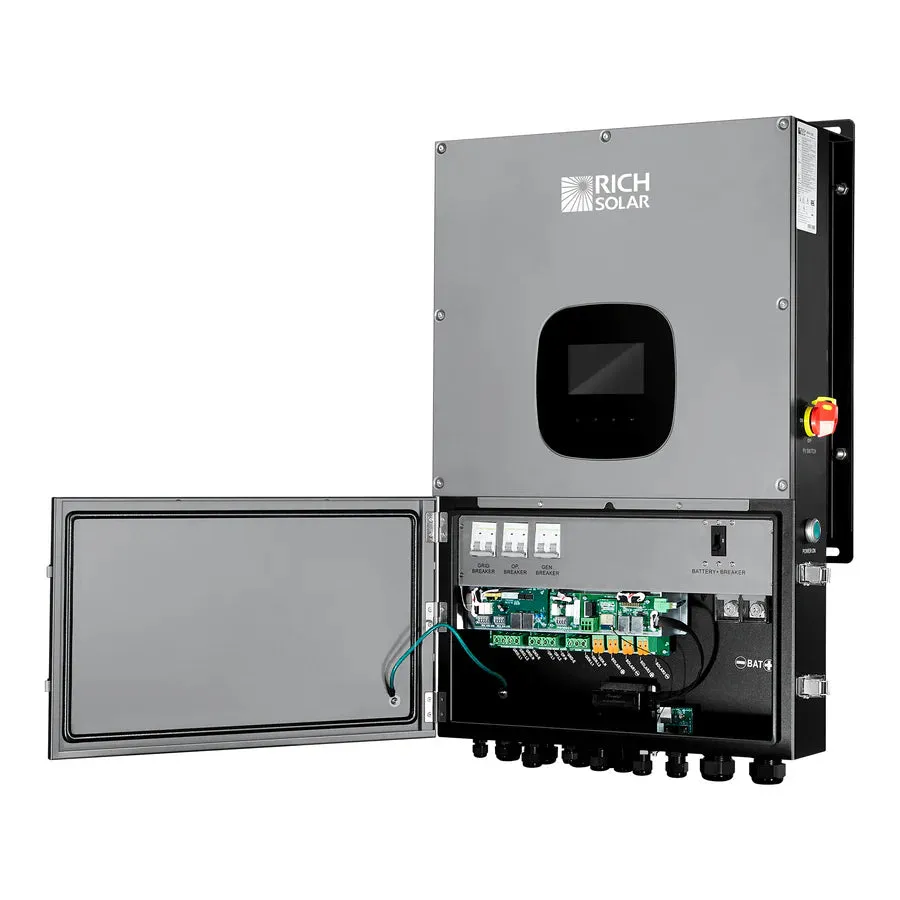

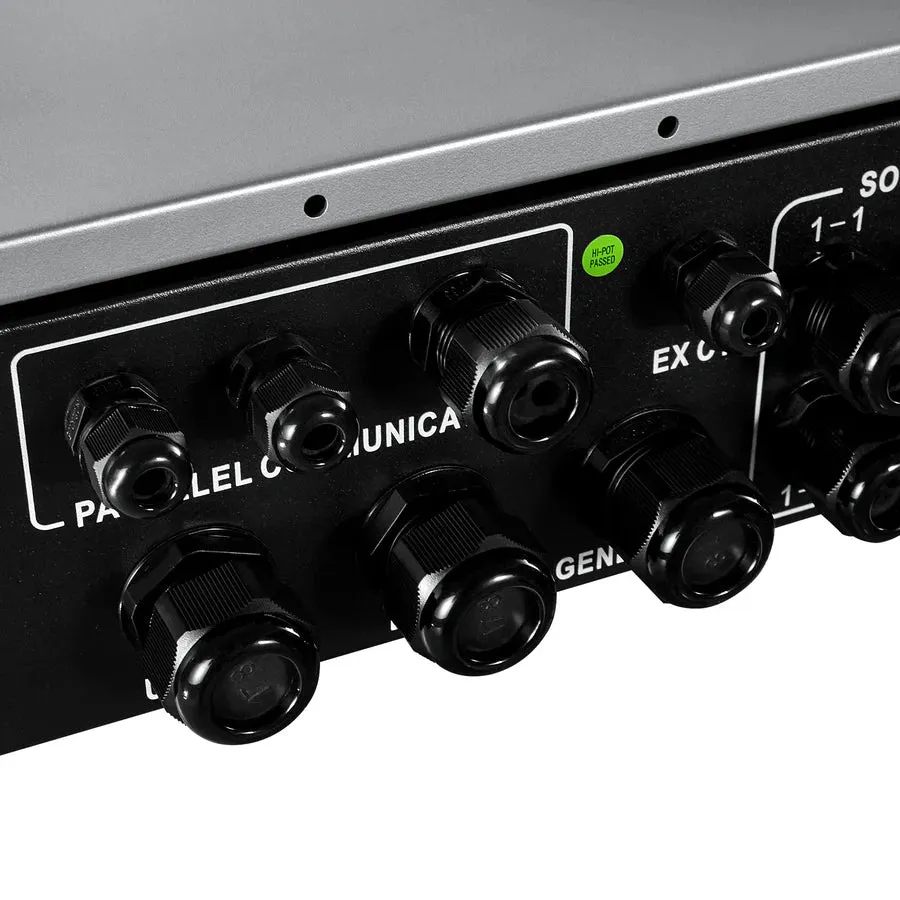

Door-type cable compartment.
Built-in 300A DC breaker and 60A AC breaker.
Built-in AC coupled function.
Built-in Wi-Fi for mobile monitoring (APP is available).
Accepts second input power source, generator input compatible.
Built-in arc fault detection (AFD) and rapid shutdown (RSD).
External CT sensor to guarantee 100% self-consumption.
Built-in communication port for BMS (RS485).
User-adjustable charging current and voltage.
Parallel operation up to 6 units.

Specifications:

Brand	Rich Solar
Model	RS-H12K
Parallel Capability	6 units
Input	Maximum PV input Power: 12000W Maximum DC Voltage: 600VDC Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC MPP Voltage Range: 120VDC-550VDC Number of MPPT Trackers/Maximum Input Current: 2/18A
Output	Rated Output Power: 10000VA/10000W Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P) Output Voltage Range: 105.5-132VAC per phase Nominal Output Current: 41.5A per phase
Battery	Battery DC Voltage Range: 40-62VDC / 48VDC Maximum Solar Charging Current: 200A Maximum AC Charging Current: 200A Maximum Charging Current: 200A
Operating Environment	Operating Temperature Range: -25°C to 60°C(>45°C derating) Protection Degree: IP 65 Communication Port: RS232, RS485, WI-FI, USB

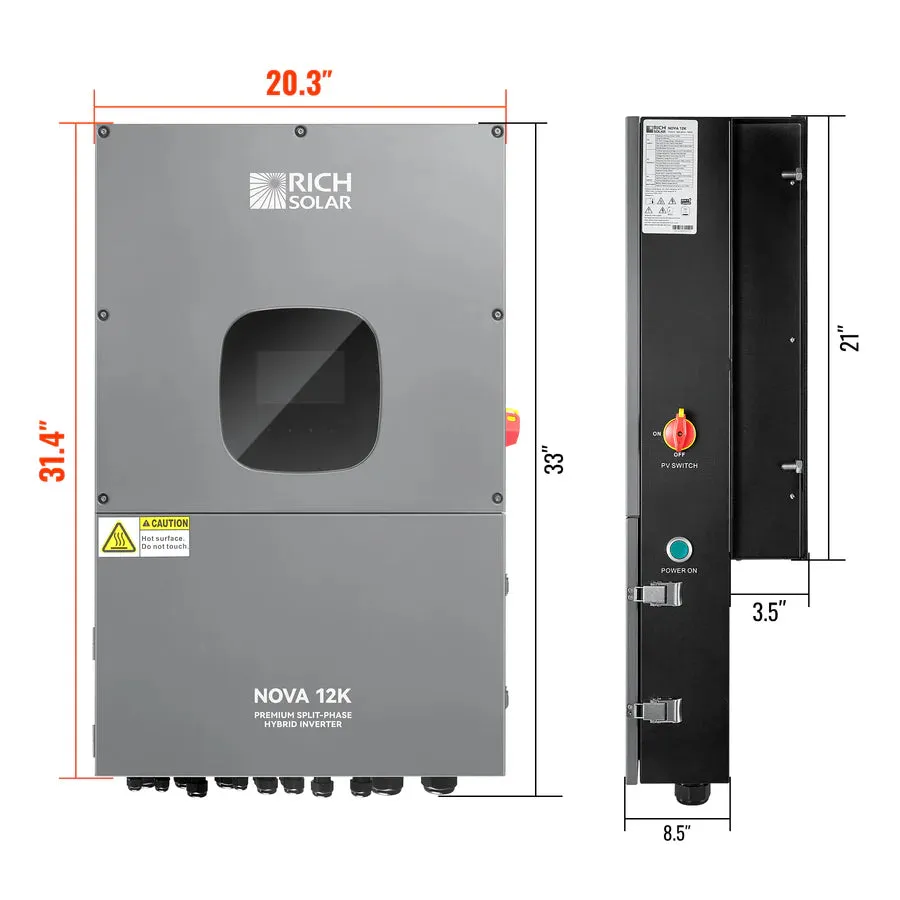

Physical	Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm Net Weight: 99.2lb / 45kg
Certificates	UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC
